Optical incremental encoder

Optical incremental encoder 11-24SN Optical incremental encoder 11-24HN

Optical incremental encoder

Dimensions:
Shaft max:
Resolution max:
Output circuit:
Protection max:

Ø 24 mm
Ø 6 mm
1024 ppr
TTL HTL
IP 65

 Optical incremental encoder

Dimensions:
Hollow shaft max:
Resolution max:
Output circuit:
Protection max:

Ø 24 mm
Ø 6 mm
1024 ppr
TTL HTL
IP 65
Optical incremental encoder 11-36SN Optical incremental encoder 11-36HN
增量型编码器 Dimensions:
Shaft max:
Resolution max:
Output circuit:
Protection max:		 Ø 36 mm

Ø 6 mm

3600 ppr

TTL HTL

IP 64

 增量型编码器 Dimensions:
Hollow shaft max:
Resolution max:
Output circuit:
Protection max:		 Ø 36 mm

Ø 6 mm

3600 ppr

TTL HTL

IP 64
Optical incremental encoder M11-36SN Optical incremental encoder M11-36HN
增量型编码器 Dimensions:
Shaft max:
Resolution max:
Output circuit:
Protection max:		 Ø 36 mm

Ø10 mm

16384 ppr

RS 422

IP 65

 增量型编码器 Dimensions:
Hollow shaft max:
Resolution max:
Output circuit:
Protection max:		 Ø 36 mm

Ø 12 mm

16384 ppr

RS 422

IP 65
Optical incremental encoder 11-40SN Optical incremental encoder 11-40HN

Optical incremental encoder

Dimensions:
Shaft max:
Resolution max:
Output circuit:
Protection max:

Ø 40 mm
Ø 6 mm
2500 ppr
TTL HTL
IP 67

Optical incremental encoder

Dimensions:
Hollow shaft max:
Resolution max:
Output circuit:
Protection max:

Ø 40 mm
Ø 6 mm
2500 ppr
TTL HTL
IP 67
Optical incremental encoder 11-50SN Optical incremental encoder 11-58HN

Optical incremental encoder 11-50SN

Dimensions:
Shaft max:
Resolution max:
Output circuit:
Protection max:

Ø 50 mm
Ø 8 m
2500 ppr
TTL
IP 67

Optical incremental encoder 11-58HN

Dimensions:
Hollow shaft max:mm
Resolution max:
Output circuit:
Protection max:

Ø 58 mm
Ø 8...Ø 15
25000 ppr
TTL HTL, SIN/COS
IP 67
Optical incremental encoder 11-58SN Optical incremental encoder 11-58HD

Optical incremental encoder

Dimensions:
Shaft max:
Resolution max:
Output circuit:
Protection max:

Ø 58 mm
Ø 6...Ø 12 mm
25000 ppr
TTL HTL, SIN/COS
IP 67

Optical incremental encoder 11-58HN

Dimensions:
Hollow shaft max:mm
Resolution max:
Output circuit:

Protection max:

Ø 58 mm
Ø 8...Ø 15
25000 ppr
TTL HTL, SIN/COS
IP 67
Optical incremental encoder 11-58SD Optical incremental encoder 11-80HN

Optical incremental encoder

Dimensions:
Shaft max:
Resolution max:
Output circuit:
Protection max:

Ø 58 mm
Ø 6...Ø 12 mm
25000 ppr
TTL HTL, SIN/COS
IP 67

Optical incremental encoder

Dimensions:
Hollow shaft max: mm
Resolution max:
Output circuit:
Protection max:

Ø 80 mm
Ø 10...Ø 25
3840 ppr
TTL HTL
IP 65

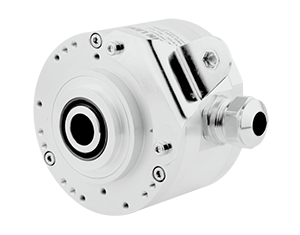

Optical incremental encoder 11-59SP Heavy-duty sleeve incremental encoder 11-94HN
Optical incremental encoder

Dimensions:
Shaft max:
Resolution max:
Output circuit:
Protection max:

Ø 58 mm
Ø 6...10 mm
1...65536 ppr
TTL HTL
IP 65

Optical incremental encoder 11-A0HN

Dimensions:
Hollow shaft max:
Resolution max:
Output circuit:
Protection max:

Ø 94 mm
Ø 12...Ø 17mm
12500 ppr
TTL HTL
IP 67

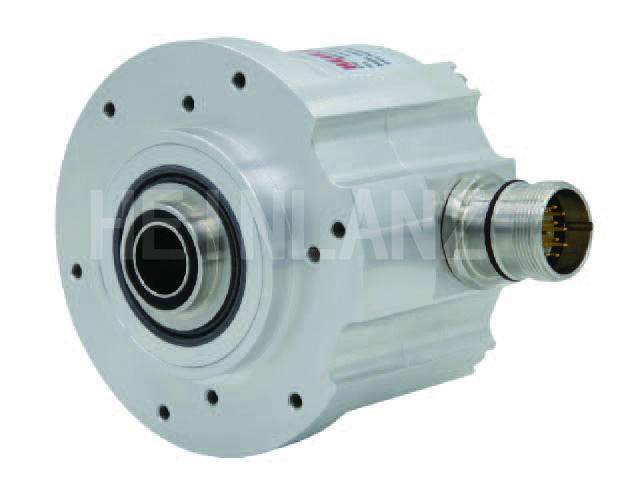

Optical incremental encoder 11-58SS Heavy-duty sleeve incremental encoder 11-98HN

Optical incremental encoder

Dimensions:
Shaft max:
Resolution max:
Output circuit:
Protection max:

Ø 58 mm
Ø 10 mm
2500 ppr
TTL HTL SIN/COS
IP 67

Optical incremental encoder 11-A0HN

Dimensions:
Hollow shaft max:
Resolution max:
Output circuit:
Protection max:

Ø 98 mm
Ø 12...Ø 17mm
10000 ppr
TTL HTL
IP 67
Heavy-duty incremental encoder 11-B5SN Optical incremental encoder 11-A0HN
Optical incremental encoder

Dimensions:
Hollow shaft max:
Resolution max:
Output circuit:
Protection max:　

Ø 90 mm
Ø 10...Ø 12mm
25000 ppr
TTL HTL SIN/COS
IP 65

Optical incremental encoder 11-A0HN

Dimensions:
Hollow shaft max:
Resolution max:
Output circuit:

Protection max:

Ø 100 mm
Ø 20...Ø 45mm
20480 ppr
TTL HTL, SIN/COS
IP 65
　 Optical incremental encoder 11-E5HN
　 　 　 Optical incremental encoder

Dimensions:
Hollow shaft max:
Resolution max:
Output circuit:
Protection max:　

Ø 135 mm
Ø 48...Ø 72mm
2048 Imp
TTL HTL
IP 65
