Multi turn
6F-58SX CANopen, CANlift |
Multi turn
6F-58HX CANopen, CANlift |
![Multi turn](../../images/6F-58SN-1542_5F-58SN-1542.jpg) |
Dimensions:
Shaft max:
Singleturn resolution:
Interfaces:
Protection max: |
Ø58 mm
Ø 6...Ø 10 mm
16 bits
CANopen, CANlift
IP 67 |
![Multi turn](../../images/6F-58HM_5F-58HN.jpg) |
Dimensions:
Hollow shaft max:
Singleturn resolution:
Interfaces:
Protection max: |
Ø 58 mm
Ø 6...Ø 15 mm
16 bits
CANopen, CANlift
IP 67 |
Multi turn
6F-58SX DeviceNET |
Multi turn 6F-58HX DeviceNET |
![Multi turn](../../images/6F-58SN-1542_5F-58SN-1542.jpg) |
Dimensions:
Shaft max:
Singleturn resolution:
Interfaces:
Protection max: |
Ø 58 mm
Ø 6...Ø 10 mm
16 bits
DeviceNET
IP 67 |
![Multi turn](../../images/6F-58HM_5F-58HN.jpg) |
Dimensions:
Hollow shaft max:
Singleturn resolution:
Interfaces:
Protection max: |
Ø 58 mm
Ø 6...Ø 15 mm
16 bits
DeviceNET
IP 67 |
Multi turn
6F-58SX Profibus-DP |
Multi turn
6F-58HX Profibus-DP |
![Multi turn](../../images/6F-58SN-1531.jpg) |
Dimensions:
Shaft max:
Singleturn resolution:
Interfaces:
Protection max: |
Ø 58 mm
Ø 6...Ø 10 mm
Maximum16 bits
Profibus-DP
IP 67 |
![Multi turn](../../images/6F-58HN.jpg) |
Dimensions:
Hollow shaft max:
Singleturn resolution:
Interfaces:
Protection max: |
Ø 58 mm
Ø 8...Ø 15 mm
Maximum16 bits
Profibus-DP
IP 67 |
Multi turn
6E-58SX ProfiNET |
Multi turn
6E-58HX ProfiNET |

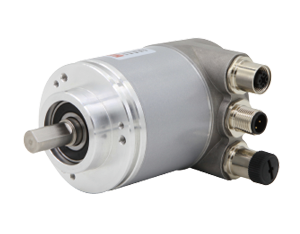

![Multi turn](images/Absolute%20encoder_SN.png) |
Dimensions:
Shaft max:
Singleturn resolution:
Interfaces:
Protection max: |
Ø 58 mm
Ø 6...Ø 10 mm
Maximum16 bits
ProfiNET
IP 67 |

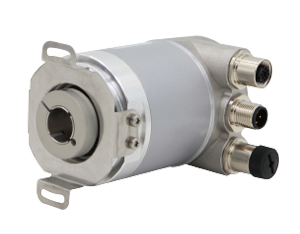

![Multi turn](images/Absolute%20encoder_HN.png) |
Dimensions:
Hollow shaft max:
Singleturn resolution:
Interfaces:
Protection max: |
Ø 58 mm
Ø 8...Ø 15 mm
Maximum16 bits
ProfiNET
IP 67 |
Multi turn
6E-58SX Ethernet/IP |
Multi turn 6E-58HX Ethernet/IP |
![Multi turn](images/Absolute%20encoder_SN.png) |
Dimensions:
Shaft max:
Singleturn resolution:
Interfaces:
Protection max: |
Ø 58 mm
Ø 6...Ø 10 mm
Maximum16 bits
Ethernet/IP
IP 67 |
![Multi turn](images/Absolute%20encoder_HN.png) |
Dimensions:
Hollow shaft max:
Singleturn resolution:
Interfaces:
Protection max: |
Ø 58 mm
Ø 8...Ø 15 mm
Maximum16 bits
Ethernet/IP
IP 67 |
Multi turn
6E-58SX
EtherCAT |
Multi turn
6E-58HX EtherCAT |
![Multi turn](images/Absolute%20encoder_SN.png) |
Dimensions:
Shaft max:
Singleturn resolution:
Interfaces:
Protection max: |
Ø 58 mm
Ø 6...Ø 10 mm
Maximum16 bits
EtherCAT
IP 67 |
![Multi turn](images/Absolute%20encoder_HN.png) |
Dimensions:
Hollow shaft max:
Singleturn resolution:
Interfaces:
Protection max: |
Ø 58 mm
Ø 8...Ø 15 mm
Maximum16 bits
EtherCAT
IP 67 |
Multi turn 61-58SX Parallel
outputs |
Multi turn 61-58HX Parallel
outputs |
![Multi turn](../../images/62-58SN_52-58SN.jpg) |
Dimensions:
Shaft max:
Singleturn resolution:
Interfaces:
Protection max: |
Ø 58 mm
Ø 6...Ø 10 mm
Maximum12 bits
Parallel outputs
IP 67 |
![Multi turn](../../images/62-58HN_52-58HN.jpg) |
Dimensions:
Hollow shaft max:
Singleturn resolution:
Interfaces:
Protection max: |
Ø 58 mm
Ø 8...Ø 12 mm
Maximum12 bits
Parallel outputs
IP 67 |
Multi turn
62-58SX SSI |
Multi turn 62-58HX SSI |
![Multi turn](../../images/62-58SN_52-58SN.jpg) |
Dimensions:
Shaft max:
Singleturn resolution:
Interfaces:
Protection max:
|
Ø 58 mm
Ø 6...Ø 10 mm
Maximum16 bits
SSI, incremental, TTl, HTL
IP 67 |
![Multi turn](../../images/62-58HN_52-58HN.jpg) |
Dimensions:
Hollow shaft max:
Singleturn resolution:
Interfaces:
Protection max: |
Ø 58 mm
Ø 8...Ø 15 mm
Maximum16 bits
SSI, incremental, TTl, HTL
IP 67 |
Multi turn
62-85SX SSI |
Multi turn
6F-85SX Profibus-DP |
![多圈编码器](../../images/5For6F-85SX.jpg) |
Dimensions:
Shaft max:
Singleturn resolution:
Interfaces:
Protection max: |
Ø 85 mm
Ø 10...Ø 12 mm
Maximum16 bits
SSI
IP 67 |
![多圈编码器](../../images/5For6F-85SX.jpg) |
Dimensions:
Shaft max:
Singleturn resolution:
Interfaces:
Protection max: |
Ø 85 mm
Ø 10...Ø 12 mm
Maximum16 bits
Profibus-DP
IP 67 |
Multi turn
6F-85SX CANopen |
|
![多圈编码器](../../images/5For6F-85SX.jpg) |
Dimensions:
Shaft max:
Singleturn resolution:
Interfaces:
Protection max: |
Ø 85 mm
Ø 10...Ø 12 mm
16 bits
CANopen
IP 67 |
|
|
|
