Inside cylinder Analog Output L5-AXXXX-1A |

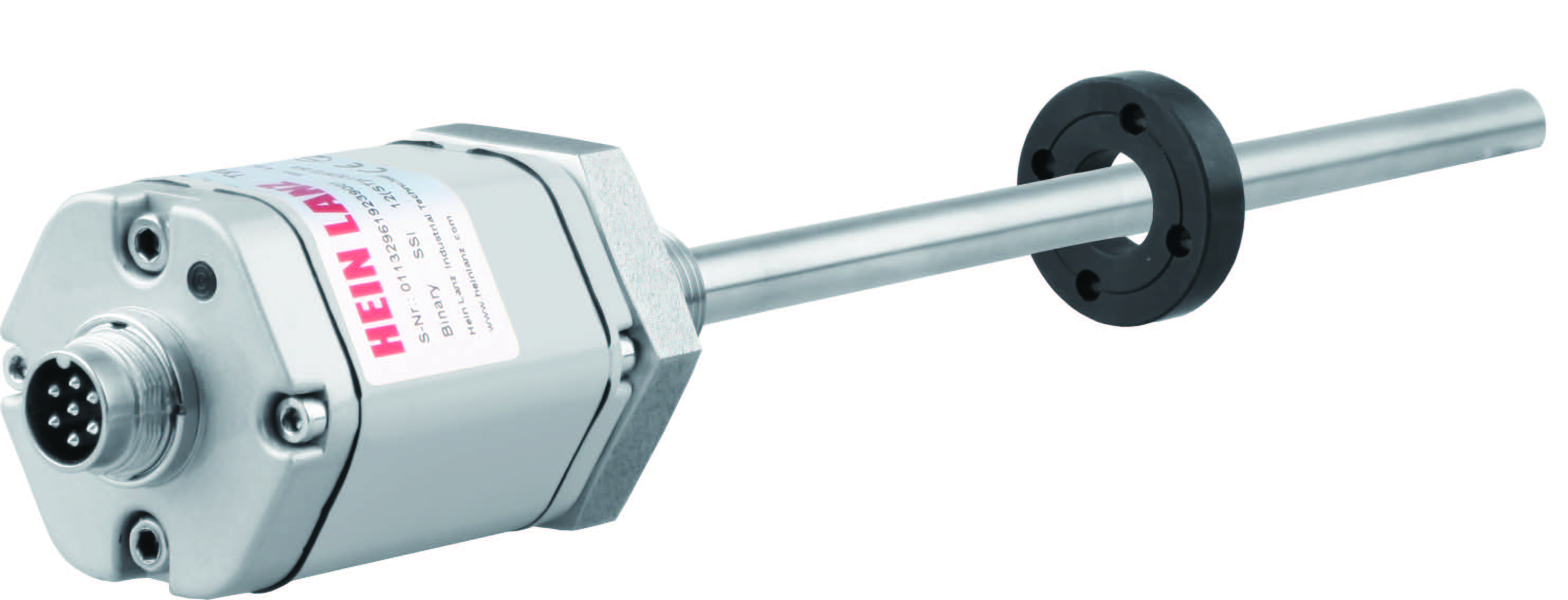

Inside cylinder SSI ou tput L5-AXXXX-12 |
|
 |
Measuring Lenght：25~7600mm
Resolution： 16bits D/A
Connection：Cable or M16,6 pins Connector
Voltage：24VDC-15% / +20%)
Current：<50mA(depend on
Measuring range) |
 |
Measuring Lenght：25~7600mm
SSI Signal：24、25、26bits Binaryor Gray
Resolution：0.5/1/2/5/10/20/50/100μm
Voltage：24VDC（-15% / +20%)
Current：<60mA(depend on Measuring range) |
|

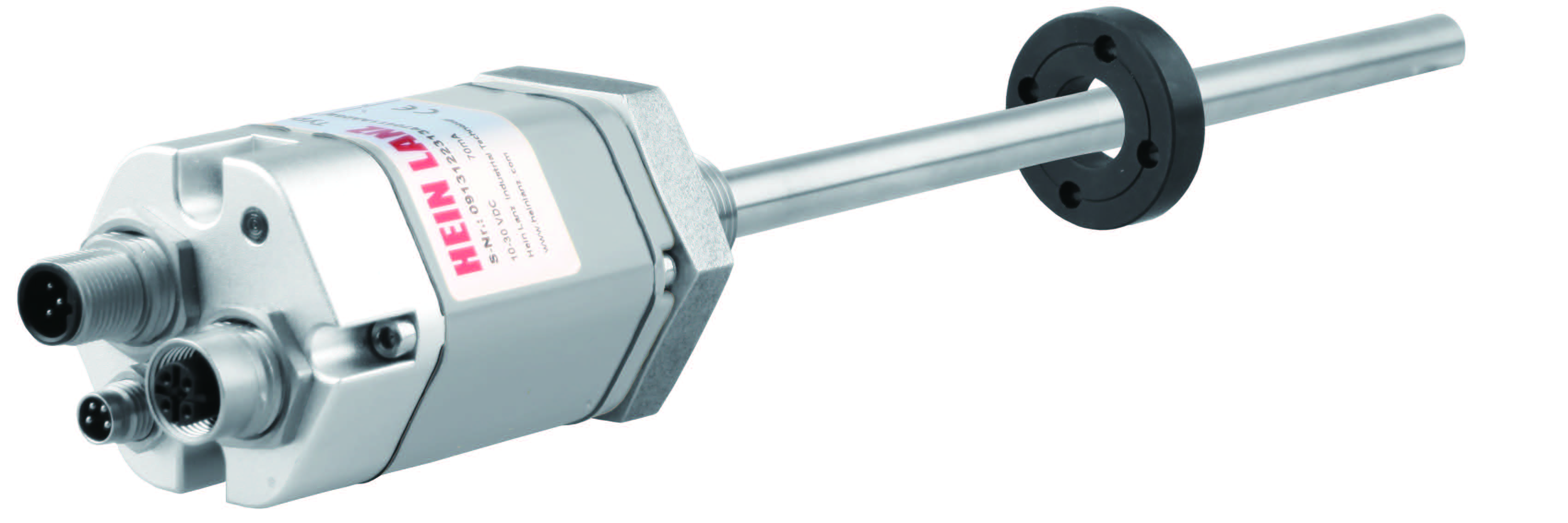

Inside cylinder Profibus DPOutput
L5-AXXXX-13 |
Inside cylinder Start / Stop pulse L5-AXXXX-14 |
|
 |
Measuring Lenght：25~7600mm
Resolution：1 μm/Can be modified via GSD file
Connection：Dual M16Connectoror
Dual M12Connector+M8Connector
Voltage：24VDC（-15% / +20%)
Current：<50mA(depend on Measuring range) |
 |
Measuring Lenght：25~7600mm
Resolution：16bits D/A
Connection：Cable or M16,6 pinsConnector
Voltage：24VDC（-15% / +20%)
Current：<50mA(depend on Measuring range) |
|

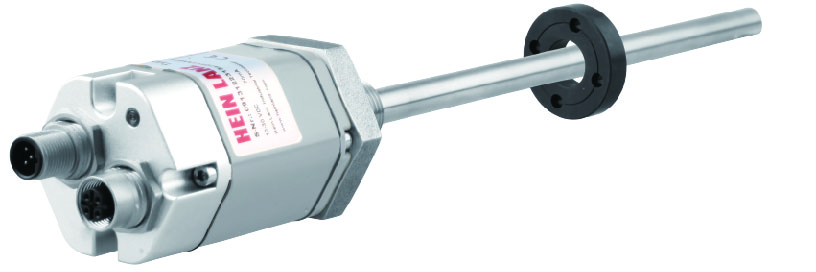

Inside cylinder CANopen L5-AXXXX-15 |

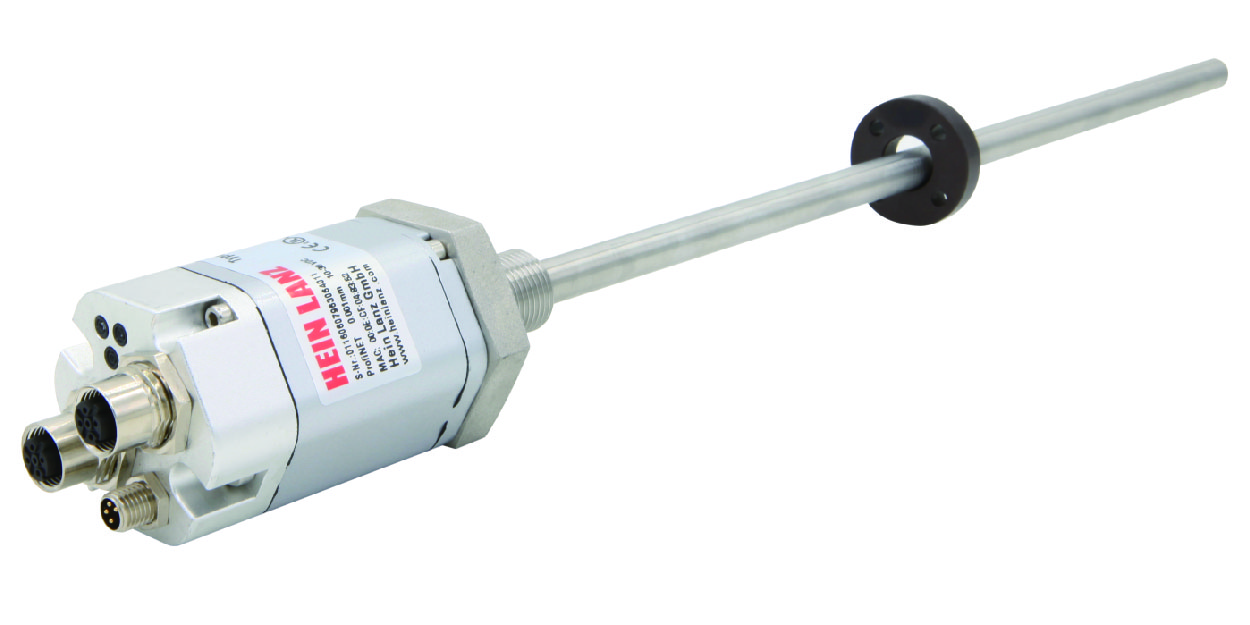

Inside cylinder ProfiNET L5-AXXXX-16 |
|
 |
Measuring Lenght：25~7600 mm
Resolution：2 μm / Freely changeable with configuration software
Connection：Double M16, 6-core aviation plug or waterproof connector with straight cable
Voltage：24VDC（-15% / +20%)
Current：<60mA(depend on Measuring range) |
 |
Measuring Lenght：50~2800mm
Resolution：1 μm / Freely changeable with GSD files
Connection：Double M12 connectors + M8 connectors
Voltage：24VDC（-15% / +20%)
Current：<50mA(depend on Measuring range) |
|

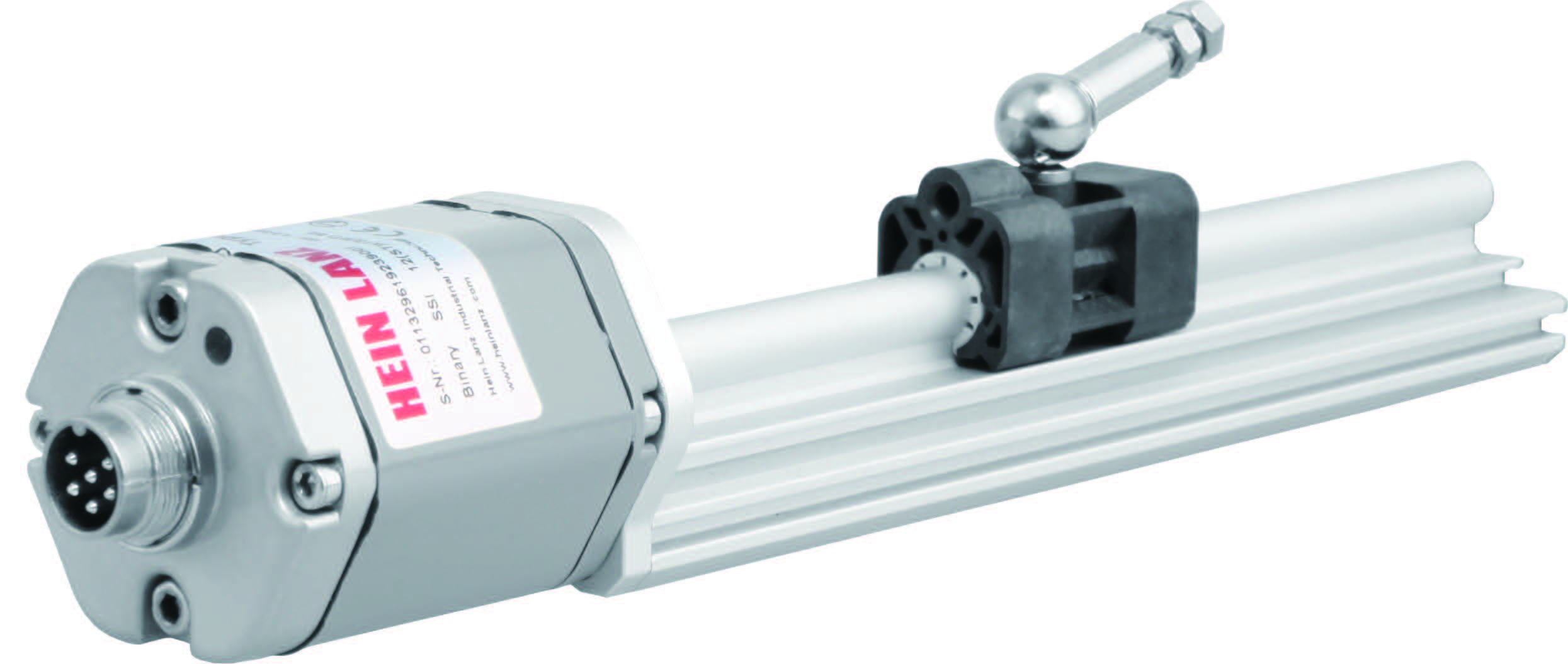

Outside cylinder Analog Output L5-BXXXX-1A
|
Outside cylinder SSI output L5-BXXXX-12 |
|
 |
Measuring Lenght：25~3500mm
Resolution：16bits D/A
Connection：Cable or M16,6 pinsConnector
Voltage：24VDC（-15% / +20%)
Current：<50mA(depend on Measuring range) |
 |
Measuring Lenght：25~3500mm
SSI Signal：24、25、26bits Binaryor Gray
Resolution： 0.5/1/2/5/10/20/50/100 μm
Voltage：24VDC（-15% / +20%)
Current：<60mA(depend on Measuring range) |
|

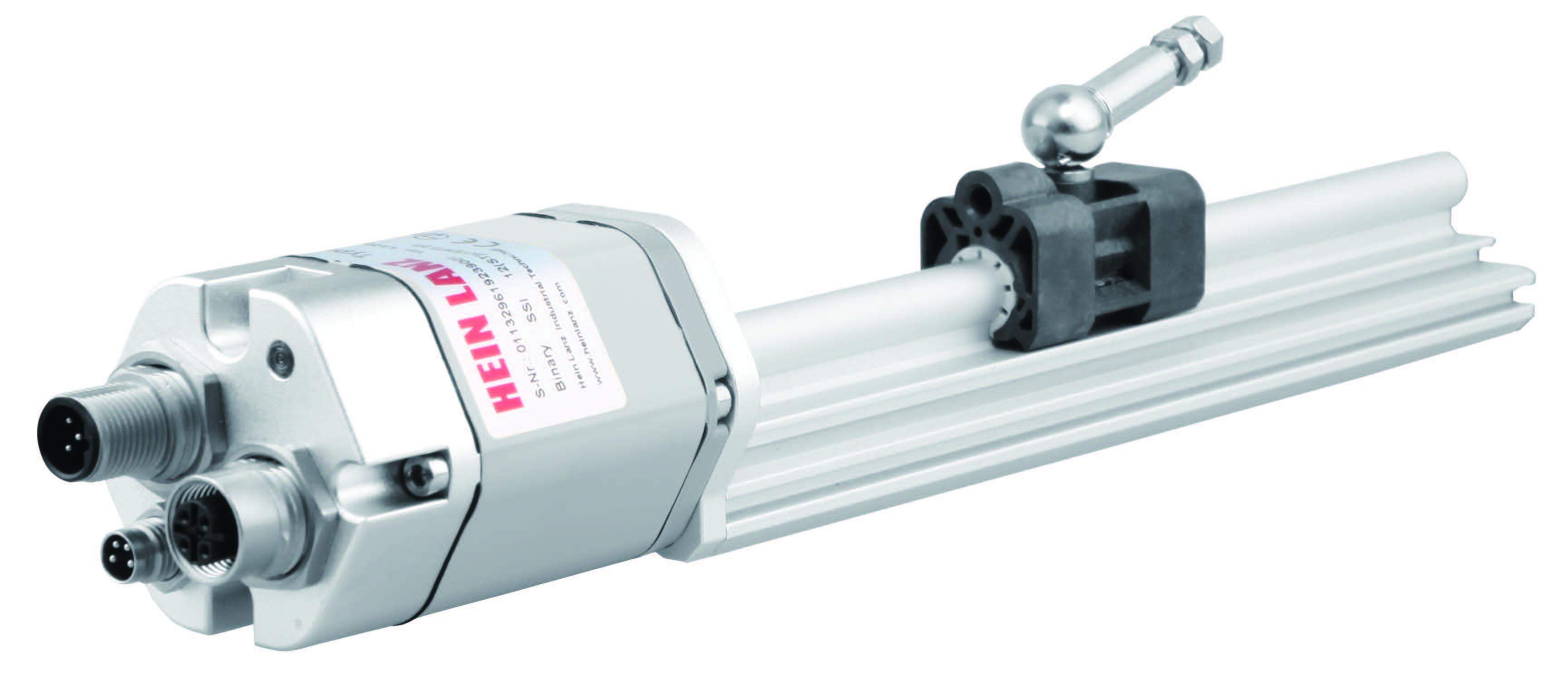

Outside cylinder Profibus DPOutput L5-BXXXX-13 |
Outside cylinder Start / Stop pulse L5-BXXXX-14 |
|
 |
Measuring Lenght：25~3500mm
Resolution：1 μm/Can be modified via GSD file
Connection：Dual M16Connectoror Dual M12Connector+M8Connector
Voltage：24VDC（-15% / +20%)
Current：<50mA(depend on
Measuring range) |
 |
Measuring Lenght：25~3500mm
Resolution： 0.1 mm/0.01 mm/0.005 mm
Connection：Cable or M16,6 pinsConnector
Voltage：24VDC（-15% / +20%)
Current：<60mA(depend on Measuring range） |
|

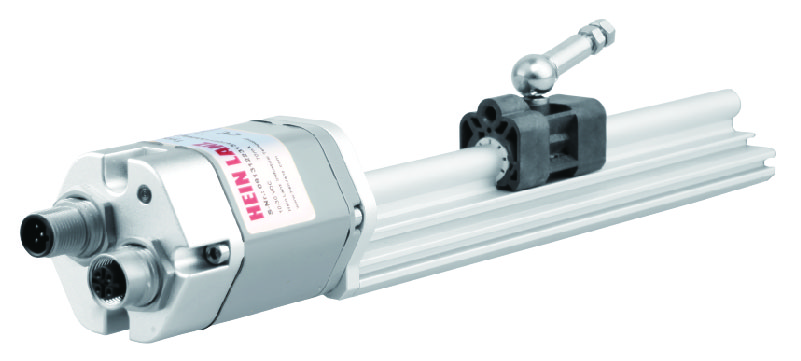

Outside cylinder CANopen L5-BXXXX-15 |

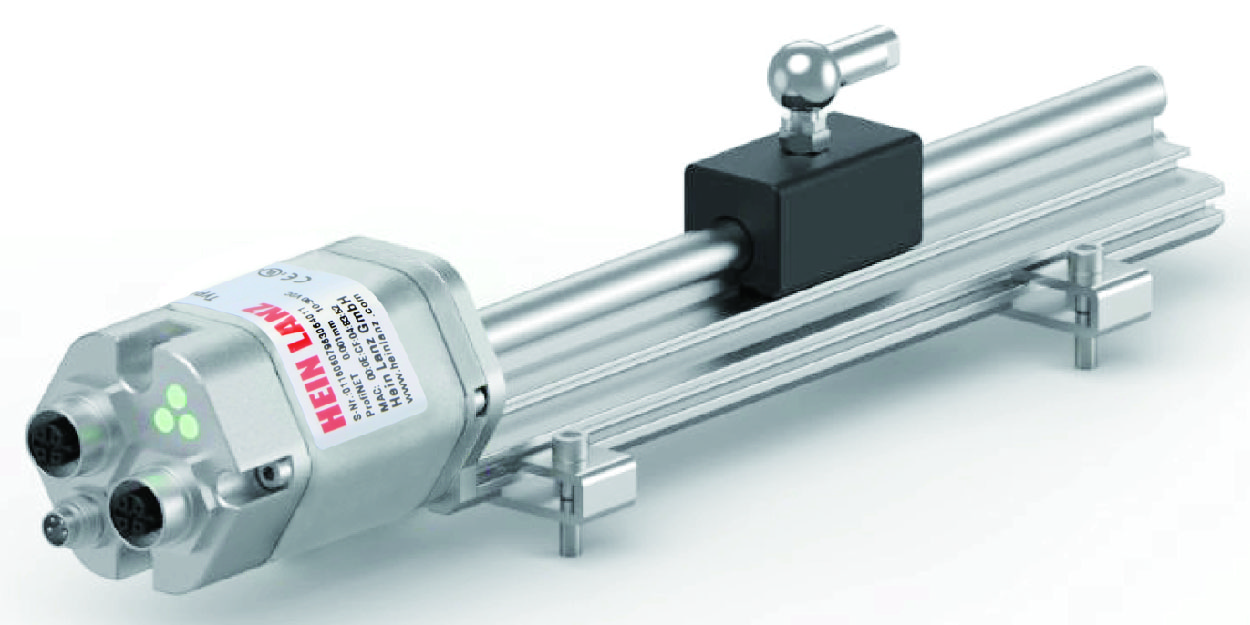

Outside cylinder ProfiNET L5-BXXXX-16 |
|
 |
Measuring Lenght：25~3500mm
Resolution：2 μm / Freely changeable with configuration software
Connection：Double M16, 6-core aviation plug or waterproof connector with straight cable
Voltage：24VDC（-15% / +20%)
Current：<60mA(depend on Measuring range） |
 |
Measuring
Lenght：25~3500mm
Resolution：2 μm / Freely
changeable with configuration software
Connection：Double M16,
6-core aviation plug or waterproof
connector with straight cable
Voltage：24VDC（-15% /
+20%)
Current：<60mA(depend on
Measuring range） |
|

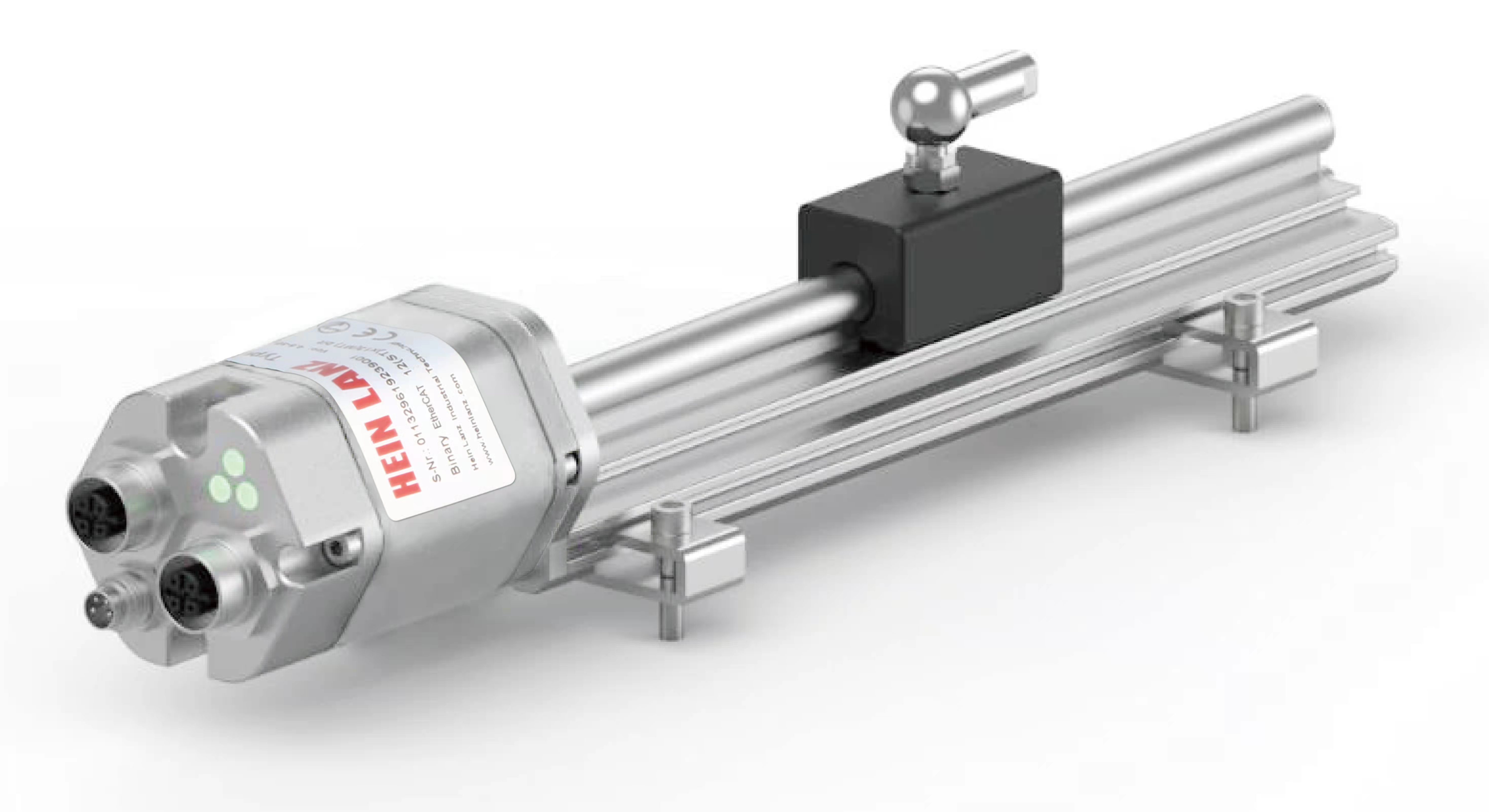

Outside cylinder EtherCAT L5-BXXXX-17 |
Inside Flexible Analog L5-CXXXX-1A |
 |
Measuring Lenght：25~3800
mm
Resolution： 1 μm / Freely changeable
with GSD files
Connection：Double M12 connectors + M8
connectors
Voltage：24VDC（-15 / +20%)
Current：＜ 120mA（depend on Measuring
range） |
 |
Measuring Lenght：500~10000 mm
Resolution： 16bits D/A
Connection：Cable or M16,6 pins Connector
Voltage：24VDC（-15% / +20%)
Current：＜60mA(depend on Measuring range) |
|

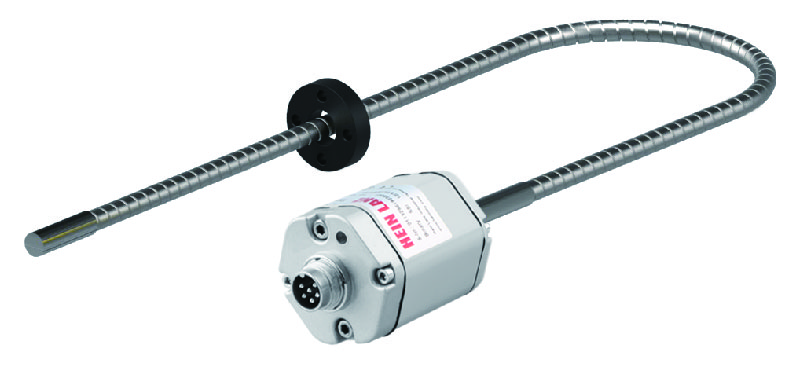

Inside Flexible SSI L5-CXXXX-12 |
Split Body Analog Output L5 - DXXXX-1A |
|
 |
Measuring Lenght：500~10000 mm
SSI Signal：24、25、26bits Binary or Gray
Connection：Cable or M16,7/8 pins Connector
Voltage：24VDC（-15% / +20%)
Current：＜60mA(depend on Measuring range) |
 |
Measuring Lenght：25~2500mm
Resolution： 16bits D/A
Connection：Cable or M16,6 pinsConnector
Voltage：24VDC（-15% / +20%)
Current：＜50mA(depend on Measuring range) |
|

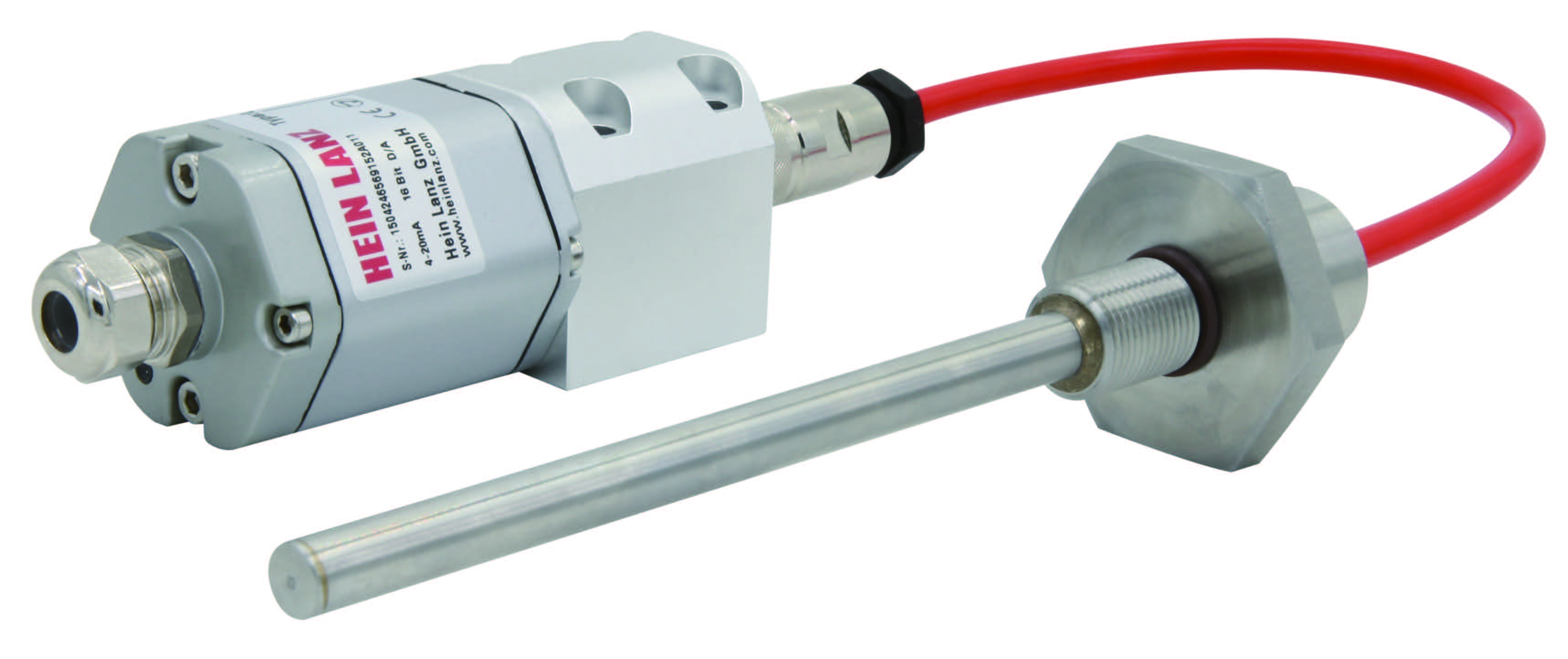

Split Body SSI Output L5-DXXXX-12 |
Split Body CANopen L5-DXXXX-15 |
|
 |
Measuring Lenght：25~3500mm
SSI Signal：24、25、26bits Binaryor Gray
Connection：Cable or M16,7 pinsConnector
Voltage：24VDC（-15% / +20%)
Current：＜60mA(depend on Measuring range) |
|
Measuring Lenght：25~3500 mm
Resolution：2 μm / Freely changeable with configuration software
Connection：Double M16, 6-core aviation plug or waterproof connector with straight cable
Voltage：24VDC（-15% / +20%)
Current：＜60mA(depend on Measuring range)
|
|

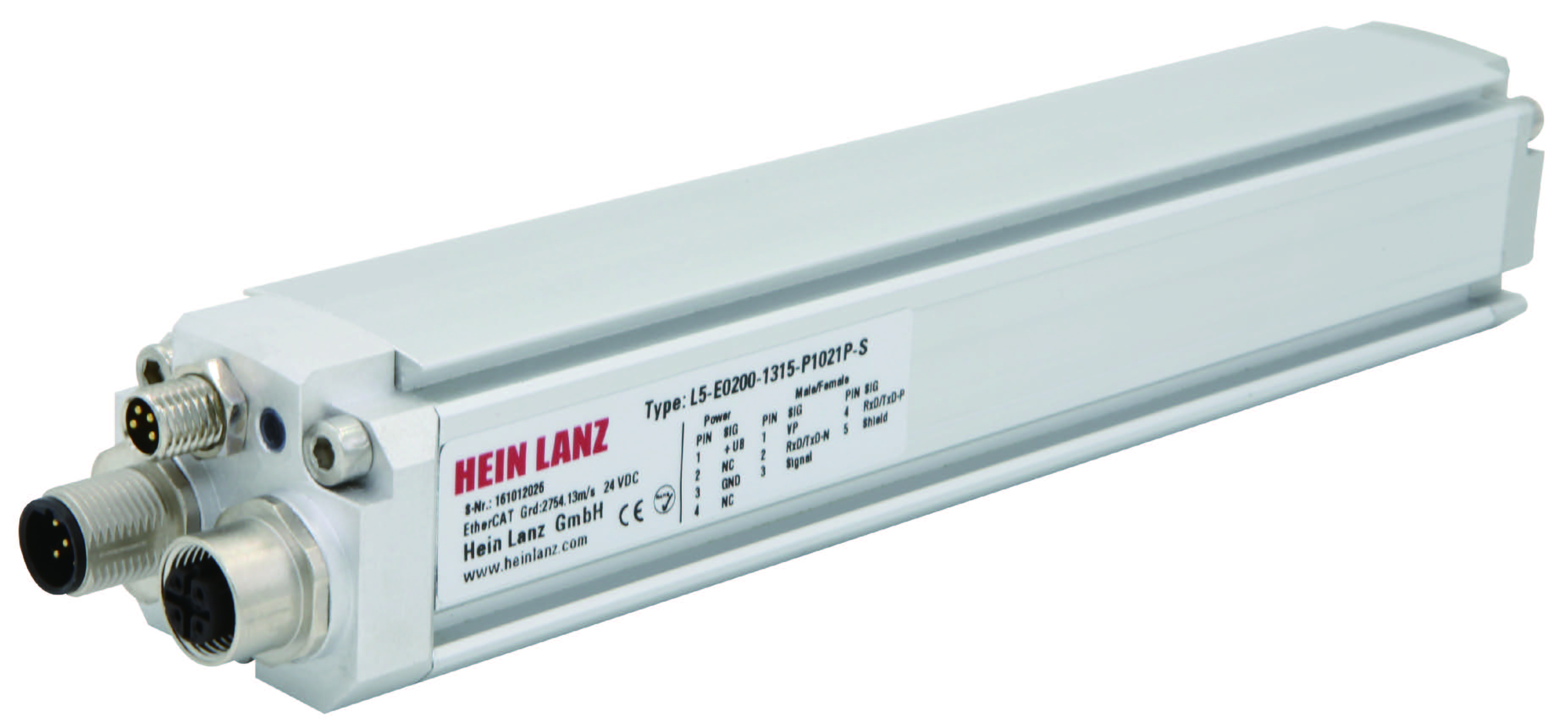

Outside Cylinder Profibus DP L5 - EXXXX-13 |

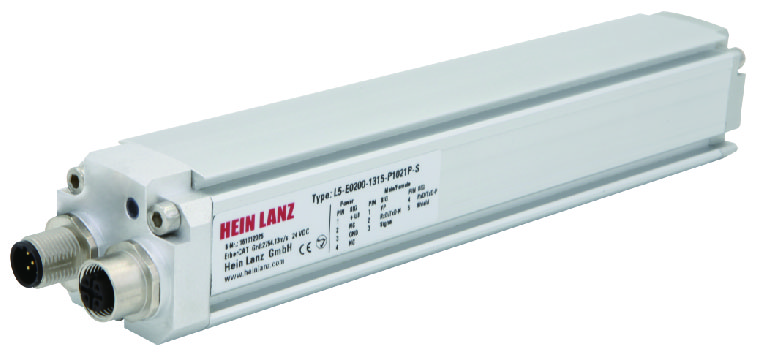

Outside cylinder CANopen L5-EXXXX-15 |
 |
Measuring Lenght：50~4500mm
Resolution：1 μm / Can be modified via GSD file
Connection：Dual M12Connector+M8Connector
Voltage：24VDC（-15% / +20%)
Current：＜50mA(depend on Measuring range)
|
 |
Measuring Lenght：50~4500 mm
Resolution：2 μm / Freely changeable with configuration software
Connection：Double M16, 6-pin connector or waterproof connector with straight cable
Voltage：24VDC（-15% / +20%)
Current：＜60mA(depend on Measuring range)
|
|

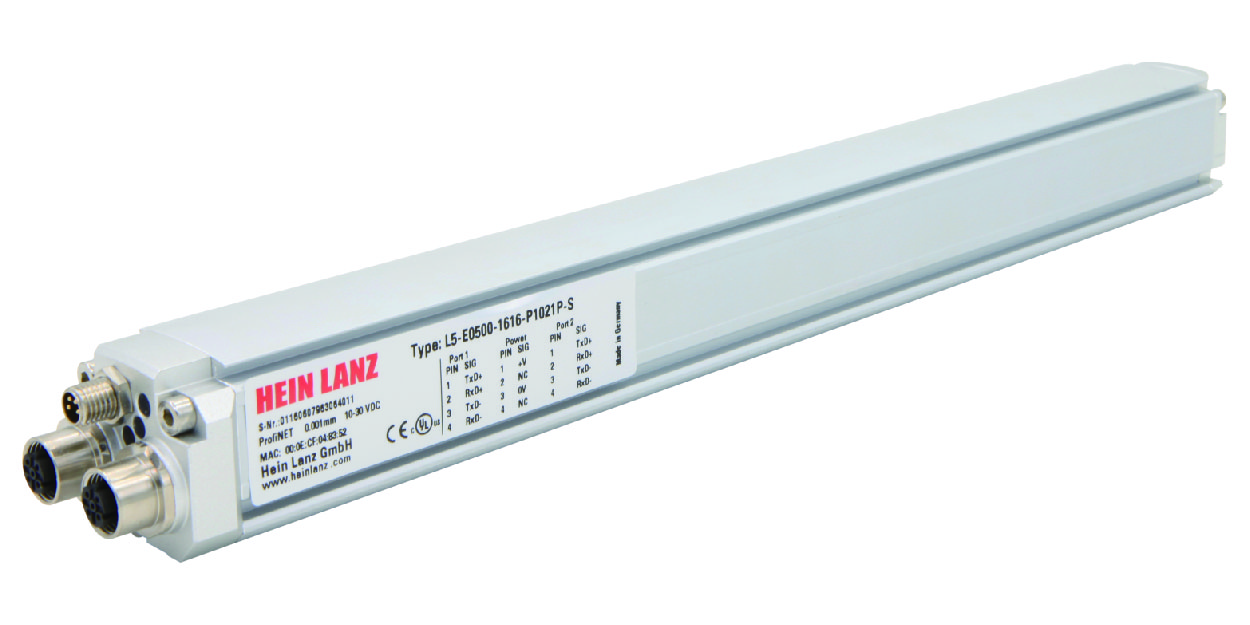

Outside Square ProfiNET L5-EXXXX-16
|
Inside Thin electronic head SSI L5-FXXXX-12 |
|
 |
Measuring Lenght：50~2800 mm
Resolution：1 μm / Freely changeable with GSD files
Connection：Double M12 connectors + M8 connectors
Voltage：24VDC（-15% / +20%)
Current：＜120mA(depend on Measuring range)
|
 |
Measuring Lenght：50~3250 mm
Resolution：24、25、26 bits Binary or Gray
Connection：Waterproof connectors or M16, 7 pins Connector
Voltage：24VDC（-15% / +20%)
Current：＜60mA(depend on Measuring range)
|
|

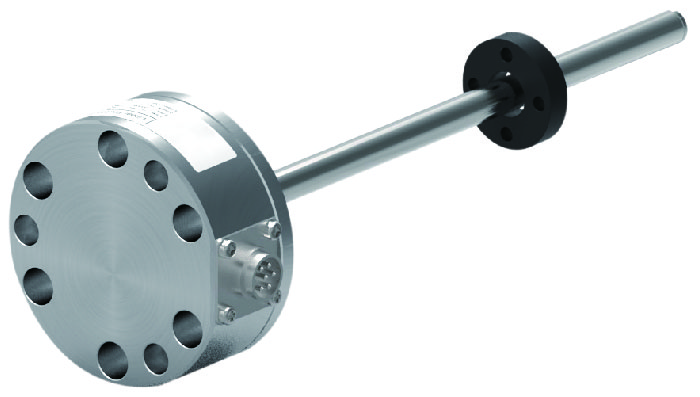

Inside Thin electronic head Analog L5-FXXXX-1A |

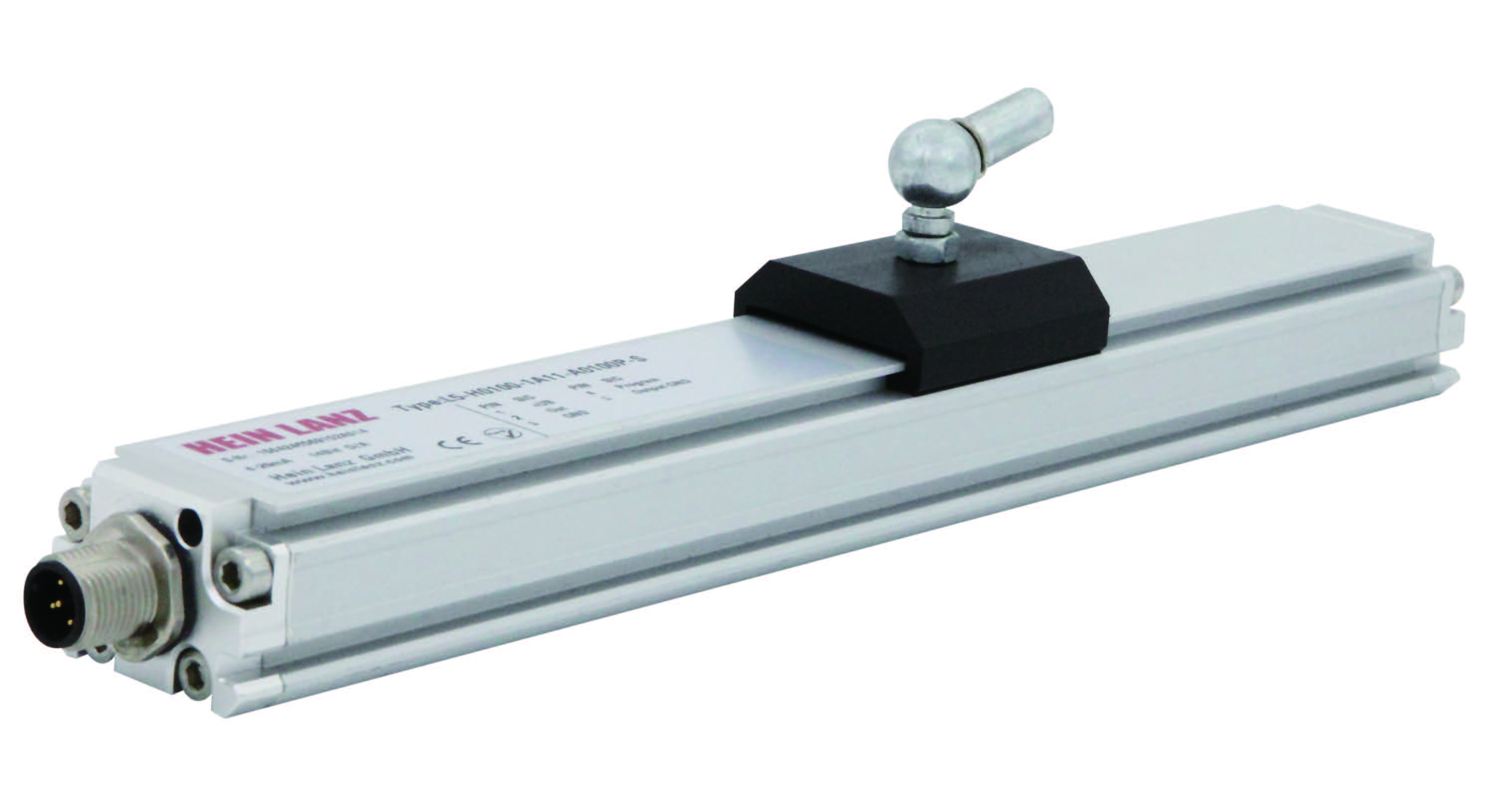

Square housing / slide & floating magnet An alog Output L5-HXXXX-1A
|
|
 |
Measuring Lenght：50~3250 mm
Resolution：16 bits D/A
Connection：Waterproof connectors or M16, 6 pins Connector
Voltage：24VDC（-15% / +20%)
Current：＜50mA(depend on
Measuring range)
|
 |
Measuring Lenght：50~4500mm
Resolution： 14bitsD/A
Connection：Cable or M12,5 pinsConnector
Voltage：24VDC（-15% / +20%)
Current：<50mA(depend on
Measuring range)
|
|

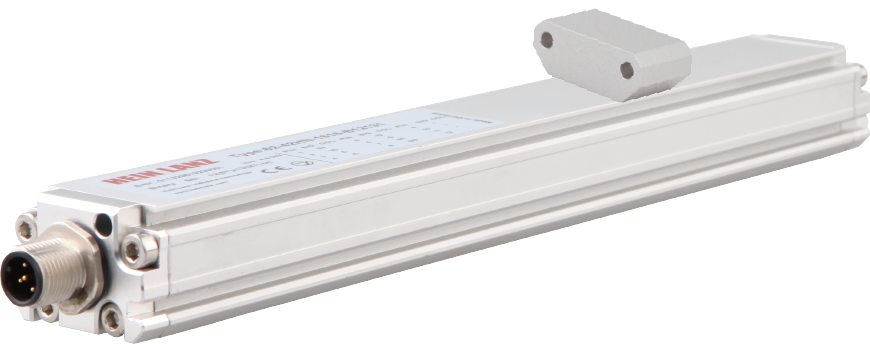

Square housing / slide & floating magnet Start / Stop pulse L5-HXXXX-14
|

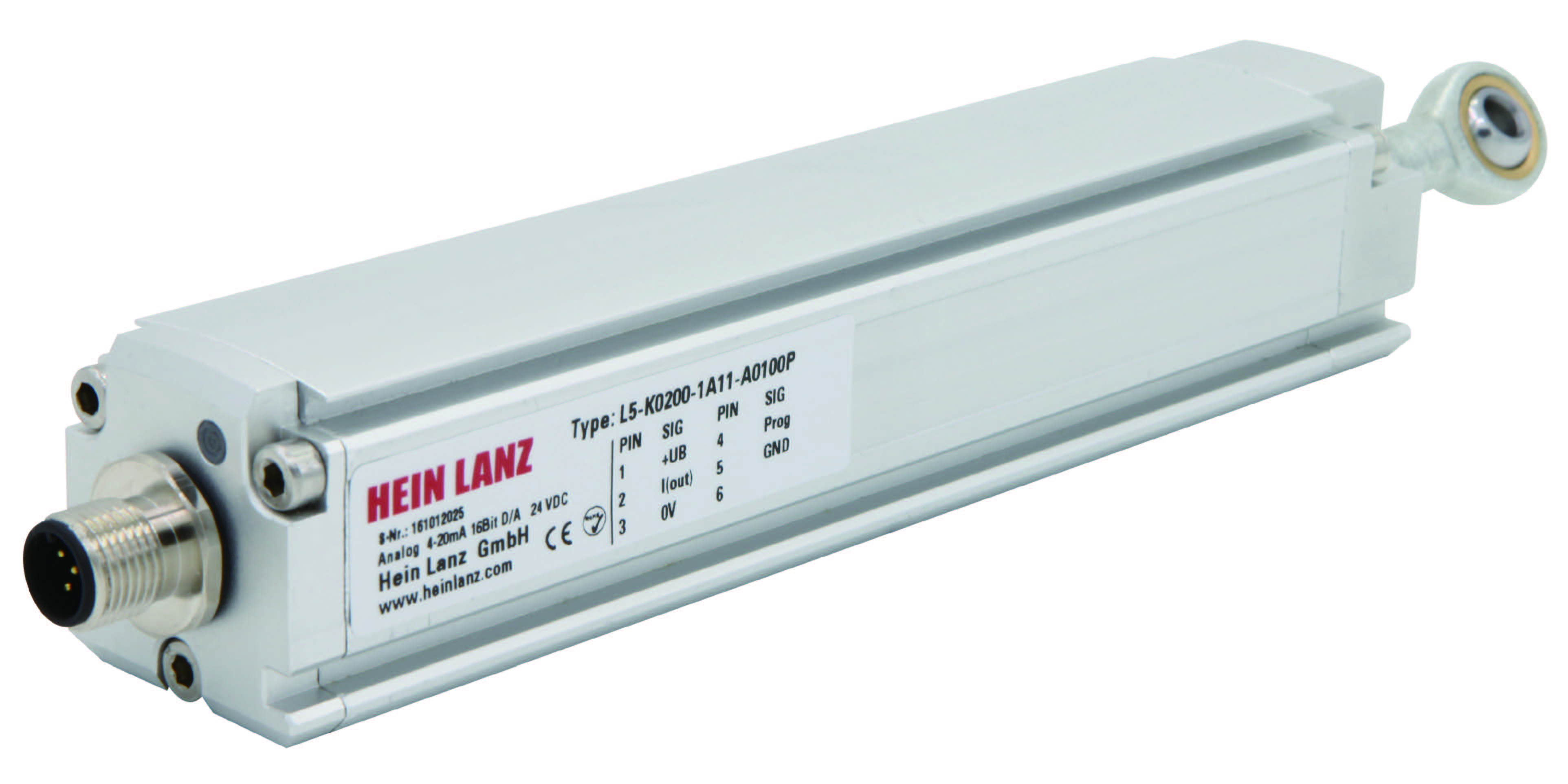

Plunger type Analog L5 - KXXXX-1A
|
 |
Measuring Lenght：50~3000mm
Resolution： 0.1 mm/0.01 mm/0.005 mm
Connection：Cable or M12,8 pinsConnector
Voltage：24VDC（-15% / +20%)
Current：<60mA(depend on Measuring range)
|
 |
Measuring Lenght：50~1200mm
Resolution： 14bits D/A
Connection：Waterproof connectors or M12,5pinsConnector
Voltage：24VDC（-15% / +20%)
Current：<60mA(depend on Measuring range)
|
|

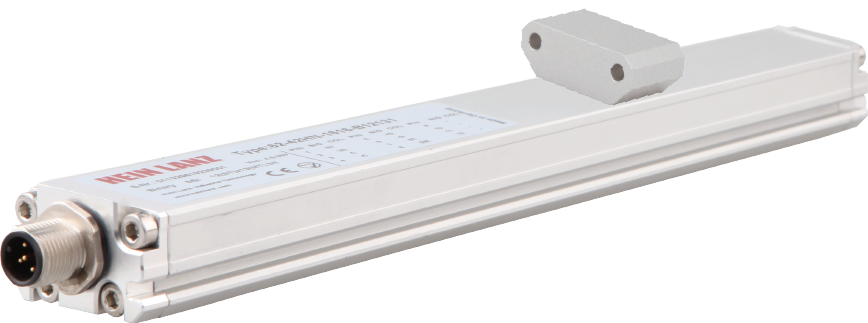

Square housing /floating magnet Analog Output L5-MXXXX-1A
|

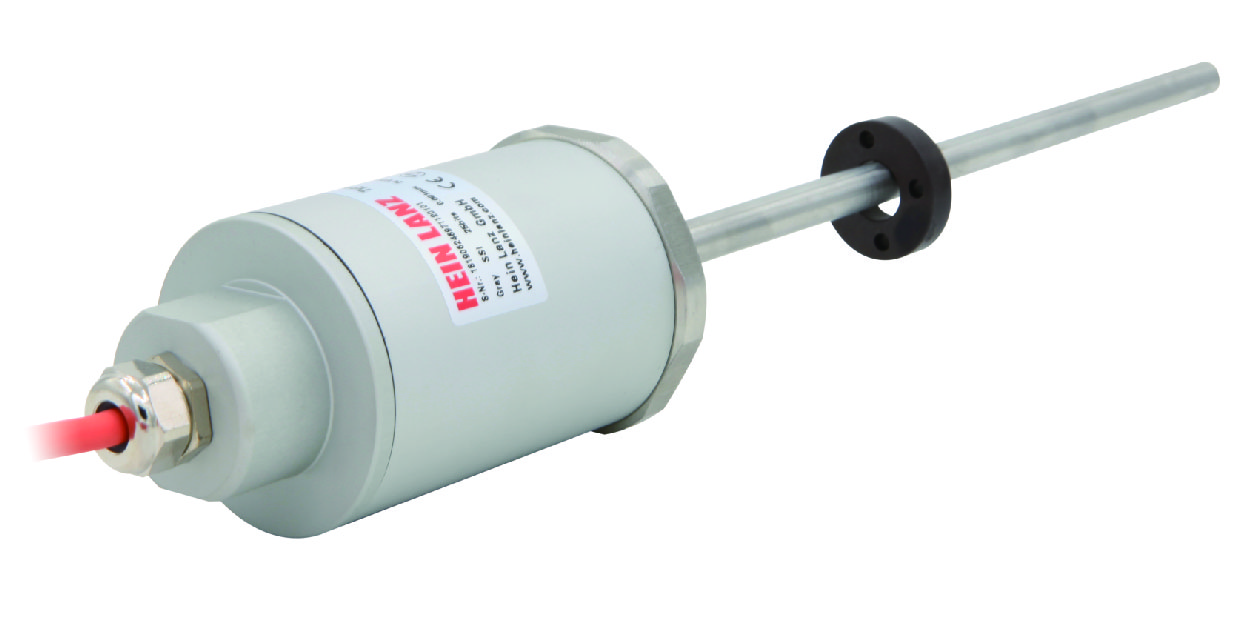

Inside high protection Analog L5-WXXXX-1A |
 |
Measuring Lenght：50~2000mm
Resolution： 14bitsD/A
Connection：Cable or M12,5 pinsConnector
Voltage：24VDC（-15% / +20%)
Current：<50mA(depend on Measuring range)
|
 |
Measuring Lenght：25~7600
Resolution： 16-bit D/A
Connection：Cable
Voltage：24VDC（-15% / +20%)
Current：<50mA(depend on Measuring range)
|
|
Inside high protection SSI L5-WXXXX-12 |

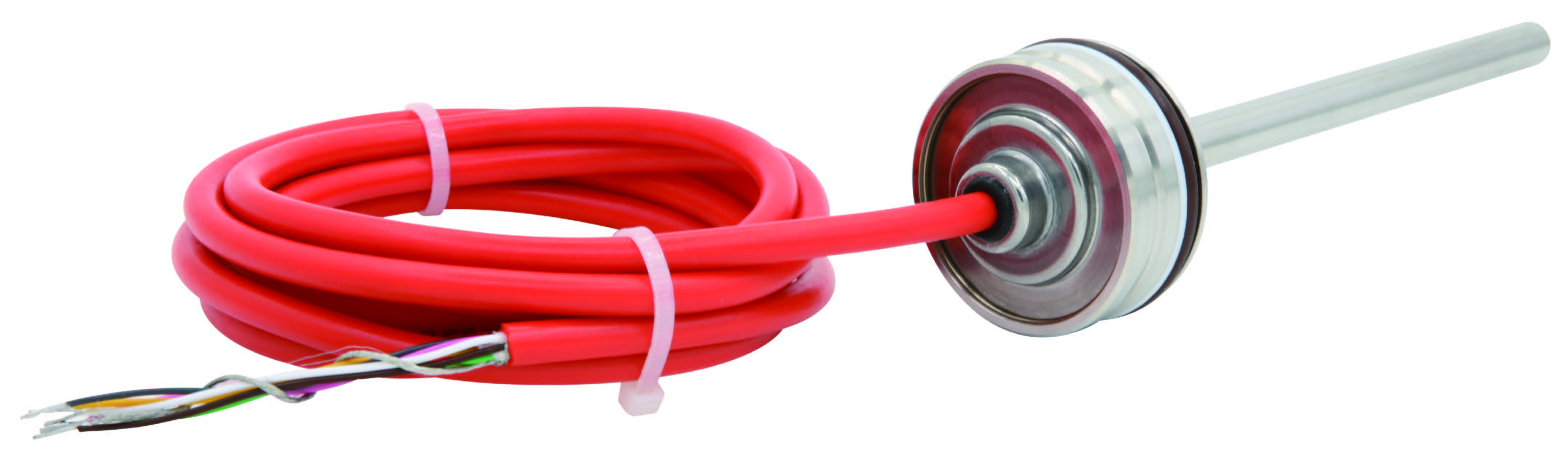

Mobile Hydraulic Analog L5 - GXXXX-1A
|
 |
Measuring Lenght：25~7600
Resolution： 16-bit D/A
Connection：Cable
Voltage：24VDC（-15% / +20%)
Current：<60mA(depend on Measuring range)
|
 |
Measuring Lenght：50~2500mm
Resolution： 16bitsD/A
Connection：Cable
Voltage：24VDC（-15% / +20%)
Current：＜50mA(depend on Measuring range)
|
